AGARWAL SONS

House of Fasteners, Hand Tools & General Hardware

Image description

STAINLESS STEEL FASTENERS

Image description
Image description
Image description
Image description
Image description
Image description
Image description

STAINLESS STEEL FASTENERS

304pricelistdec16.pdf
Click here to download latest pricelist of SS 304 Fasteners dated 01/12/2016
316pricelistjuly16.pdf
Click here to download Pricelist for SS316 grade of fasteners
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description

Fasteners made of stainless steel have become increasingly popular due to their inherent corrosion resistive properties. Their anti corrosive properties are directly attributed to the higher levels of Nickel and Chromium in the metal.



AISI Grades 202, 304 and 316 are the more commonly used material grades.



Stainless steel of grade 202 contains nickel of 5% and chromium of 18% and is the cheapest of the three grades. Fasteners of this grade are generally used for low budget uses and/or where the mating components are also not of a higher grade.



Stainless steel of grade 304 contains nickel of 8% and chromium of 18% and is the most commonly used grade for the production of fasteners. It possesses an excellent combination of strength, corrosion resistance and fabricability. Fasteners of this grade are being extensively used today in almost every industry.



Grade 316 contains Nickel of 10% and chromium of 16% added with 2% molybdenum which gives the metal very high anti corrosive properties. Fasteners of this grade are used mostly in the chemical and marine industry.



All kinds of fasteners are available in the above grades. The different types and their size range are summarized below.





Fastener

Standards

Grades Available

Size Range (Metric threads)

Size Range (BSW threads)

From

To

From

To

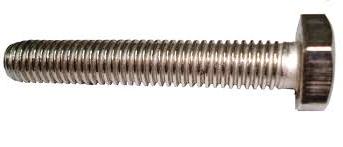

Hexagonal Bolts (Fully threaded screws)


IS 1363/DIN 933/BS 1083

202, 304 & 316

M3 x 10 (in 304)

M6 x 10 (in 202 & 316)

M24 x 300

3/16” x 1/2”

3/4” x 8”


Hexagonal Full  and Lock Nuts


IS 1363/ DIN 934/439/ BS 1083

202, 304 & 316

M2

M36

1/8”

1”

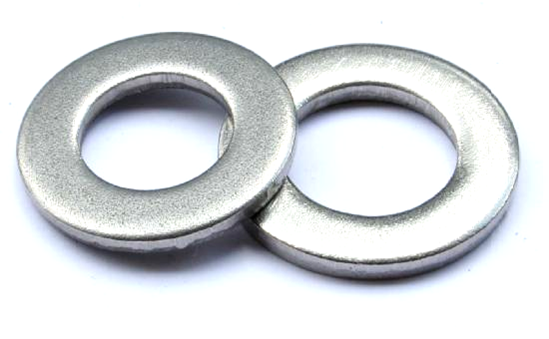

Plain Washers


IS 2016

202, 304 & 316

M3

M36

1/8”

1”


Spring Washers (Square and Flat sections)


IS 3063

202, 304 & 316

M3

M36

1/8”

1”

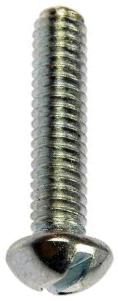

Slotted Machine Screws (with CSk, Cheese, Round and Raised CSK heads)


IS 1365/1366/8911 DIN 963/84

 BS 450

202 & 304

M2 x 4

M12 x 100

1/8” x 1/4”

1/2” x 4”

Cross Recessed Machine Screws with Pan and CSK Phillips heads (PPH & CPH)

DIN 7965/965

304

M2 x 4

M6 x 50

-

-


Allen Cap Screws


IS 2269/DIN 912 BS 2470

202, 304 & 316

M3 x 6

M20 X 100

3/16” x 1/2”

5/8” X 4”


Allen CSK Screws


IS 6761/ DIN 7991 BS 2470

202 & 304

M3 x 8

M12 x 100

3/16” X 1/2”

1/2” X 4”

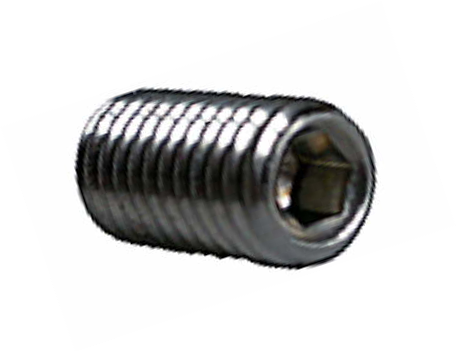

Grub Screws


IS 6094/ DIN 916/ BS 2470

304

M3 x 3

M12 x 50

3/16” x 3/16”

1/2” X 2”


Button Head Screws


ISO 7380

304

M3 x 8

M10 X 60

-

-


Slotted Self Tapping Screws (with PAN & CSK heads)


IS 7173/7170   DIN 7971/7972

202 & 304

No. 4 x 6.5

No. 14 x 50

-

-

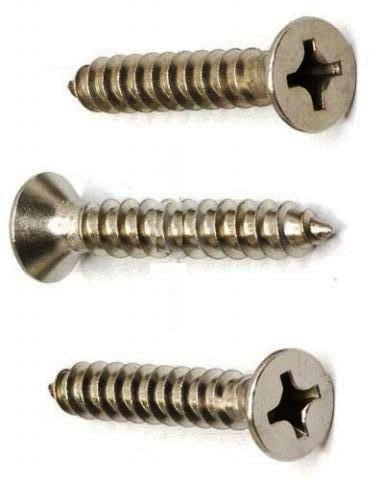

Cross Recessed Self Tapping screws (with Pan & CSK Phillips heads)


DIN 7981/7982

202 & 304

No. 4 x 6.5

No. 14 x 50

-

-

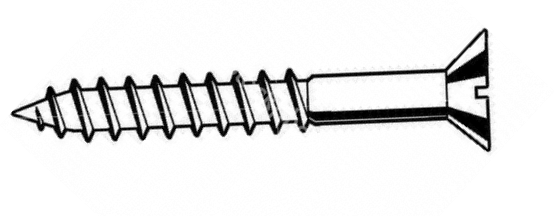

Wood Screws


IS 6760/DIN 97

202 & 304

No. 6 x 20

No. 12 x 100

-

-


Self Locking Nuts (Nylock Nuts)


IS 7002/DIN 982

304 & 316

M3

M20

3/16”

1”

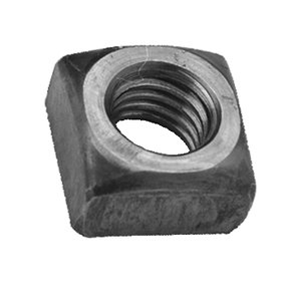

Square Nuts

IS 2585/DIN 557

304

M5

M12

-

-

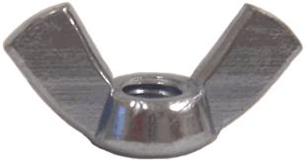

Wing Nuts


IS 2636/ DIN 315

202 & 304

M3

M12

-

-


Dom Nuts


DIN 1587

304 & 316

M3

M24

3/16”

1”


Flange Nut and Weld Nuts


DIN 6923/6927/929

304

M6

M12

-

-


Special Hex Nuts


UNI 5587

304

M6 X 6

M12 X 12

-

-


Heavy Hex Nuts


ANSI B18.2.2

304 & 316



3/8”

1”


Star Washers (Multigrip overlapping)


-

304

M6

M10

-

-

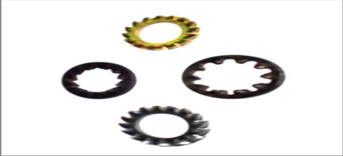

Star Washers (ET & IT)


-

304

M3

M16

-

-


Taper Washers


-

304

M6

M16

-

-

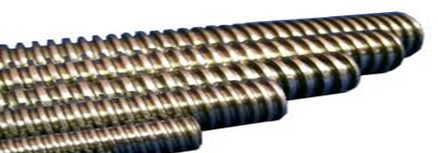

Threaded Rod


-

304 & 316

M5

M36

3/16”

1”

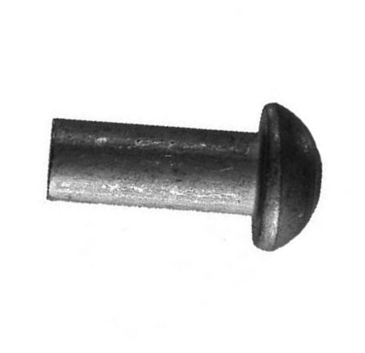

Rivets (Round, Flat and CSK heads)


IS 2609

202, 304 & 316

3mm x 10mm



-

-


POP (BLIND) RIVETS and Nuts




304




Anchor fasteners (Pin Type)


-

202 & 304

M6 x 50

M24 x 200

-

-



Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description
Image description

Other fasteners like Chip Board Screws, Thread Rolling Screws, Hammer head bolts, Low Head Socket Screws etc are arranged against order.

304pricelistdec16.pdf
Click here to download current price list of SS 304 Grade Fasteners (Price list dated 01/12/2016)
316pricelistjuly16.pdf
Click here to download Pricelist for SS 316 grade of fasteners
