Expansion (Anchor) Fasteners

Expansion fasteners are being extensively used nowadays as a quick fastening solution in concrete and brick surfaces.

Types used vary according to nature of work, budget and convenience. The types dealt in by us and the available size range is given below.

TYPE	AVAILABLE MODELS	SIZE RANGE FROM TO		GENERALLY USED IN

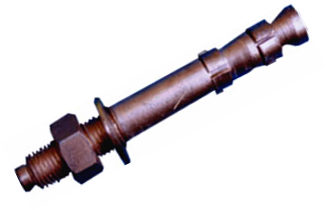

RAWL TYPE	BOLT , PROJ, Open J hook and Closed “Eye” hook	M6	M20	Scaffolding Machinery Installation Structures Electrical fittings

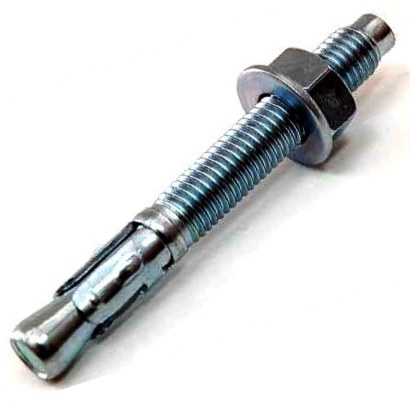

WEDGE ANCHORS	DOUBLE RING (YELLOW) and SINGLE RING (WHITE)	M8 X 75	M24 X 300	Heavy duty equipment, structures and machinery. Lift Rails Conveyors

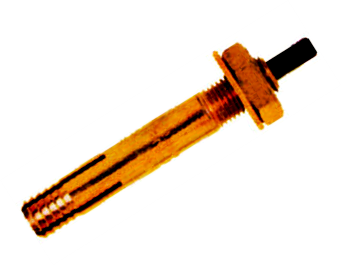

PIN (ZEBRA) TYPE	In M.S. and S.S	M6 x 50	M39 x 200	Installation of Machinery and equipment. Electrical fittings
FISHER TYPE	Bolt, J Hook and Eye Hook	M6	M10	False Ceiling Partitions Ducting
THREADED SHIELD (DROP IN ANCHOR)	BULLET TYPE	M6	M16	Angle Brackets Sliding and Rolling shutters Conveyors
MILD STEEL WEDGE TYPE (PIPE TYPE)	Bolt, Proj, J hook and Eye Hook	M6	M10	Low Budget uses
WALL PLUGS		25MM	65MM	Used with all screws in brick walls
HAMMER FIX SCREWS		M6 X 50	M10 X 160	Frame fixing
